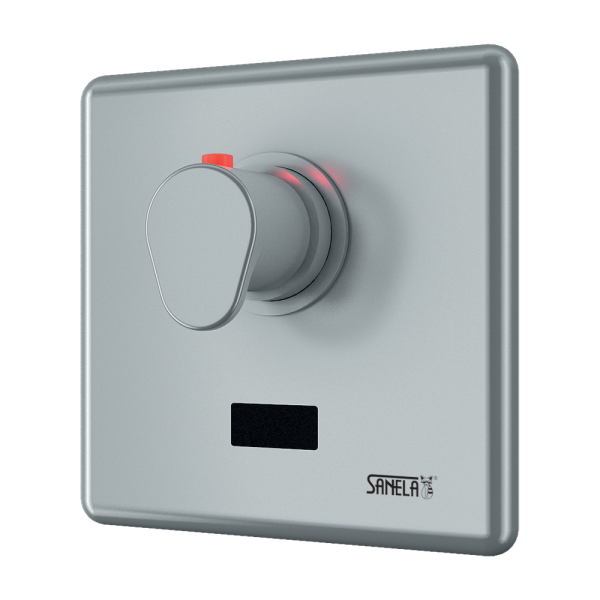

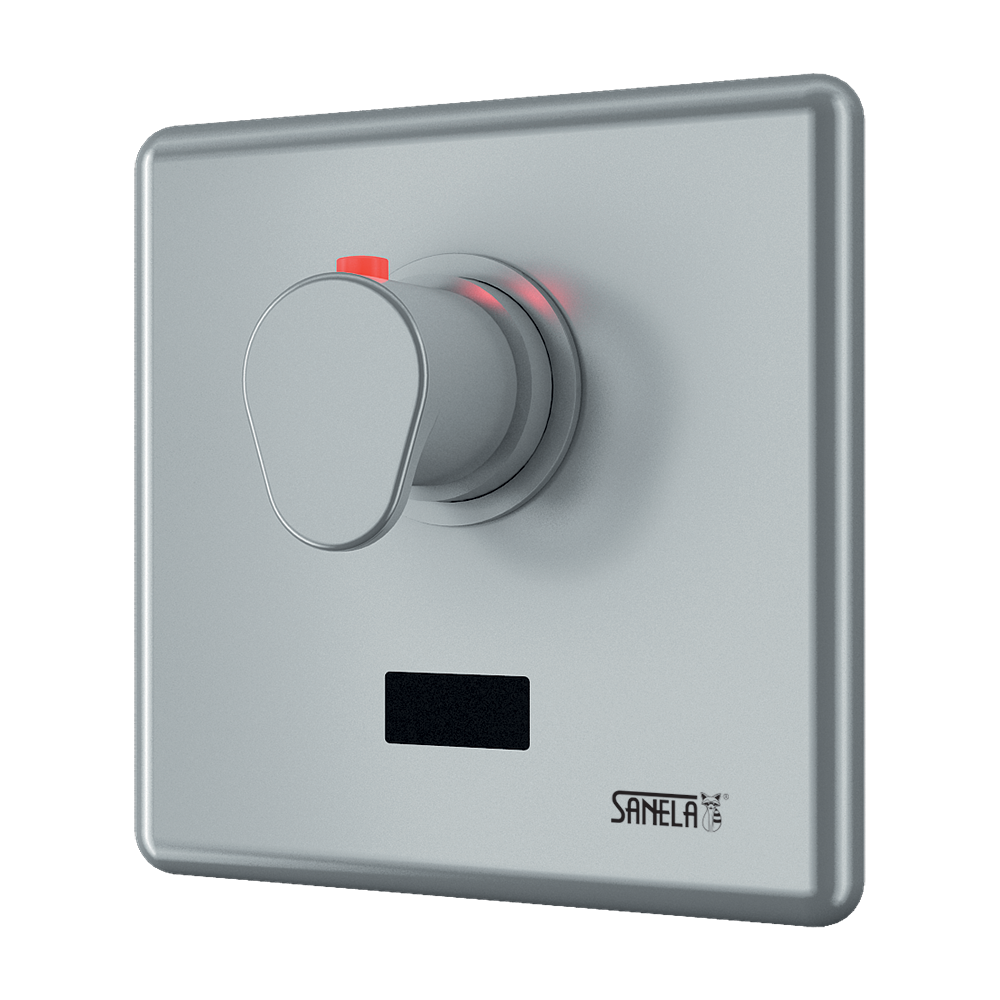

Unterputz Duschsteuerung mit Thermostatregler, 24V DC


  • system reacts to the user attendance in front of the sensor, minimum stay time in active range is 2 seconds
  • water is flowing as long as an user is in the active range
  • water stops after user leaving the active range (adjustable time delay 0,25 - 7,75 sec.)
  • possibility of changing of time delay, active range and switching off by SLD 03
  • function of automatic water stop after 5 minut of continuous flow
  • SLS 02T is destined for cold and hot water, temperature is regulated by thermostatic mixer, pressure of hot and cold water must be the same
  • safety fuse against scalding
Auftragsnummer 02023
Code SLS 02T


SLS 02T - supply No. 02023 - stainless steel stamped cover with an integrated electronics; stainless steel mounting box with a brass screw-coupling, integrated thermostatic mixer and electromagnetic valve (1 pc.); mounting set

technische Information

Dimension of stainless steel cover: 170 x 170 x 10 mm
Dimension of plastic mounting box: 150 x 160 x 65 mm
Operating voltage: 24V DC external
Active range: 0,3 - 0,7 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
