Externer Transformator 24V DC zur Montage auf DIN – Schiene im Schaltkasten


  • external power supplies are destined only for a supply of automatic sanitary electronics´ products SANELA (with the exception of battery operated products and products with an integrated power supply)
  • power supplies SLZ 04Y, SLZ 04Z and SLZ 04X are destined for fitting on the rail in switchboard
Auftragsnummer 05041
Code SLZ 04Z

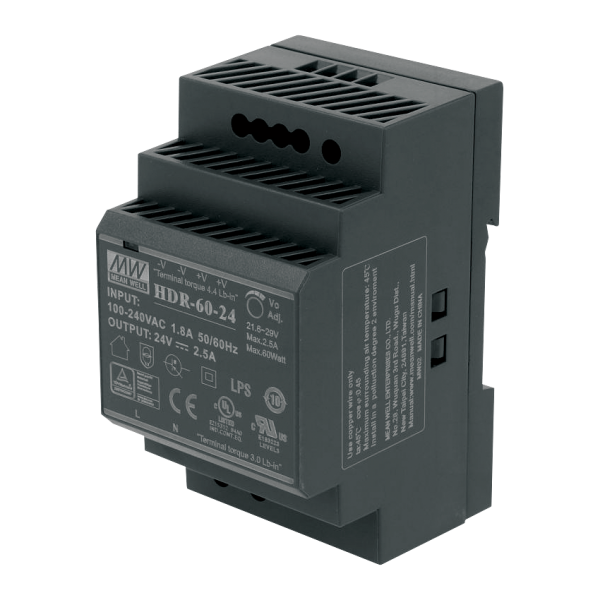

SLZ 04Z - supply No. 05041 - external power supply 24V DC on DIN rail into the switchboard

technische Information

Dimensions: cca 78 x 93 x 56 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 20
Automatic washbasin taps and shower controls supply: 9 valves max.
Automatic urinal flushing units supply: 9 valves max.
Automatic toilet flushing unit supply: 9 valves max.
Automatic toilet flushing unit SLW 02xx: max. 2 magnets
