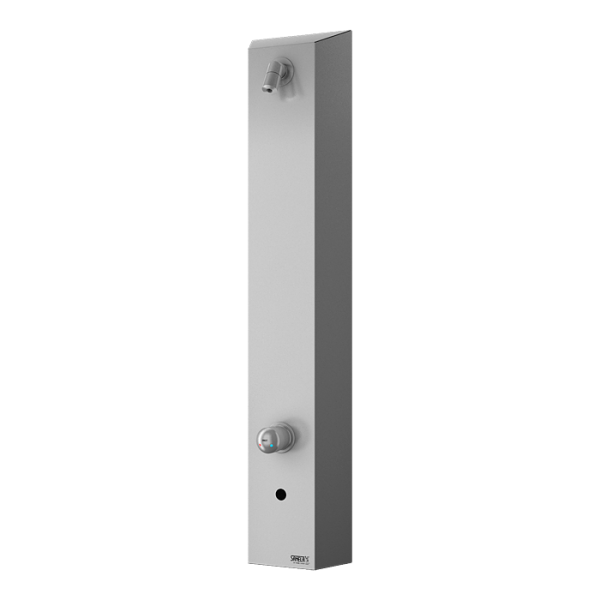

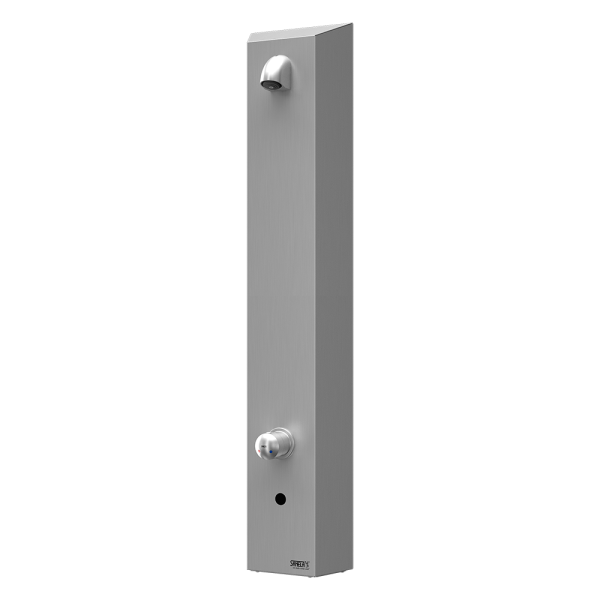

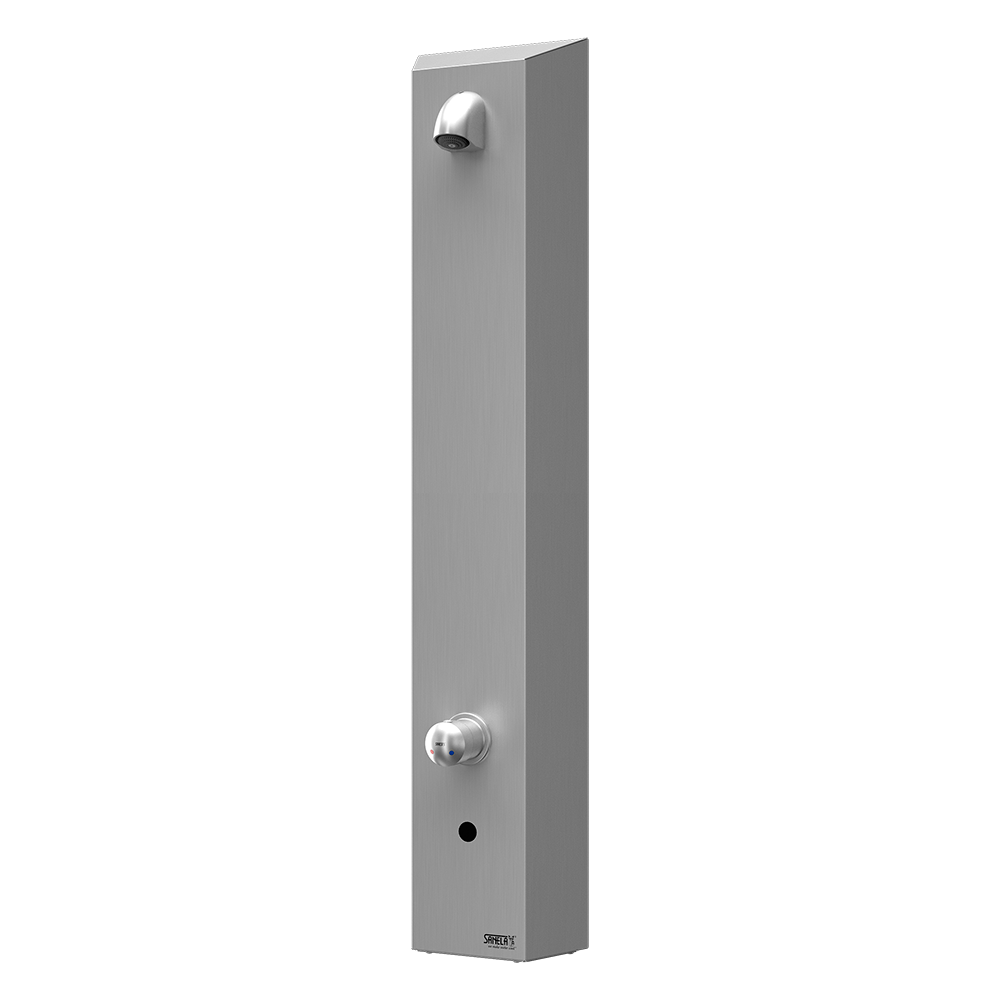

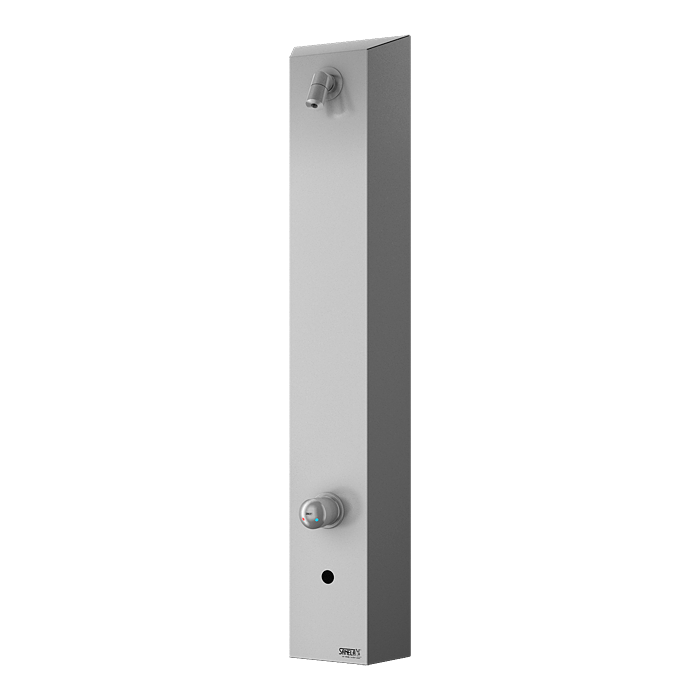

SLSN 02EB

Edelstahl – Automatik-Duschpaneel für Kalt- und Warmwasser mit Mischer, 6V

Charakteristik

  • stainless steel wall mounted shower panels with integrated infra-red electronics
  • water starts to flow immediately after entrance of user to the active range of sensor
  • water stops flowing after leaving of the user from the active range of sensor after adjustable time delay
  • time delay from 0,25 to 7,75 sec. (adjustable by SLD 03)
  • function of automatic water stop after 5 minut of continuous flow
  • water temperature is regulated by mixer
Auftragsnummer 92023
Code SLSN 02EB

Lieferumfang

SLSN 02EB - code nr. 92023 - stainless steel shower panel with an integrated electronics; shower head; electromagnetic valve (1 pc); mechanical mixer; connecting hose; angle valve with non-return valve and filter (2 pcs), set of 4 pcs. of alcaline batteries

technische Information

Operating voltage: 6V
Active range: 0,3 - 0,7 m
Flow pressure: 0,1 - 0,6 MPa
Rate of flow - 12 l/min. (inf. data)
Water inlet - male thread G 1/2“
