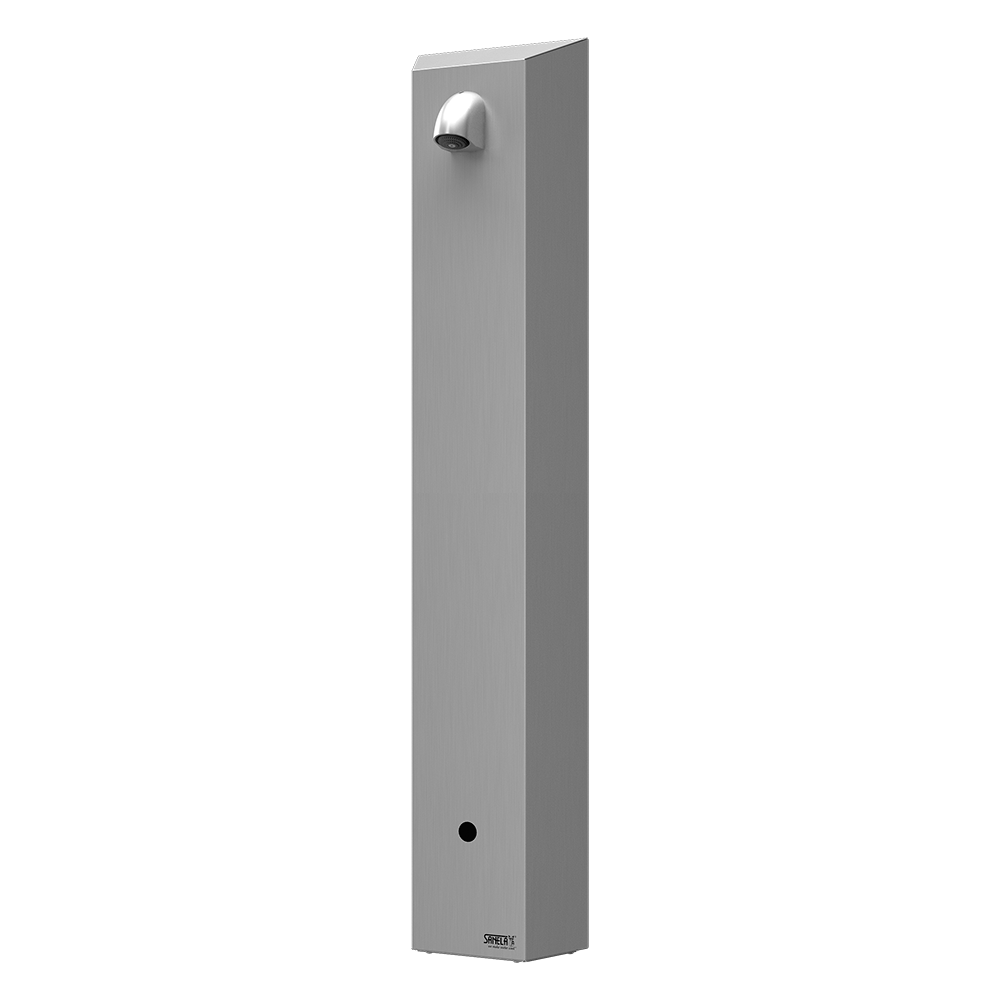

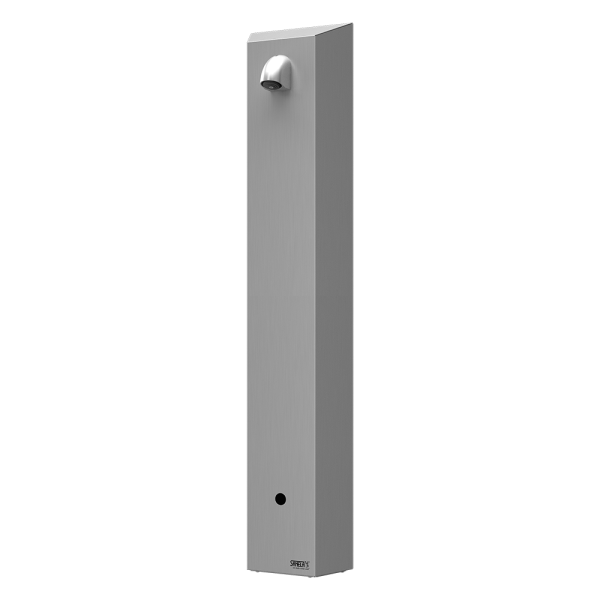

SLSN 01E

Edelstahl – Automatik-Duschpaneel für kaltes- oder vorgemischtes Wasser, 24V DC

Charakteristik

  • stainless steel wall mounted shower panels with integrated infra-red electronics
  • water starts to flow immediately after entrance of user to the active range of sensor
  • water stops flowing after leaving of the user from the active range of sensor after adjustable time delay
  • time delay from 0,25 to 7,75 sec. (adjustable by SLD 03)
  • function of automatic water stop after 5 minut of continuous flow
  • SLSN 01E(B) is destined for one water inlet (premixed water), in the case of other models
Auftragsnummer 92011
Code SLSN 01E

Lieferumfang

SLSN 01E - supply No. - 92011 - shower panel with infra-red electronics; shower head; electromagnetic valve (1 pc.); connecting hose; angle valve (1 pc.)

technische Information

Operating voltage: 24V DC
Active range: 0,3 - 0,7 m
Flow pressure: 0,1 - 0,6 MPa
Rate of flow - 12 l/min. (inf. data)
Water inlet - male thread G 1/2“
