SLP 25RZ

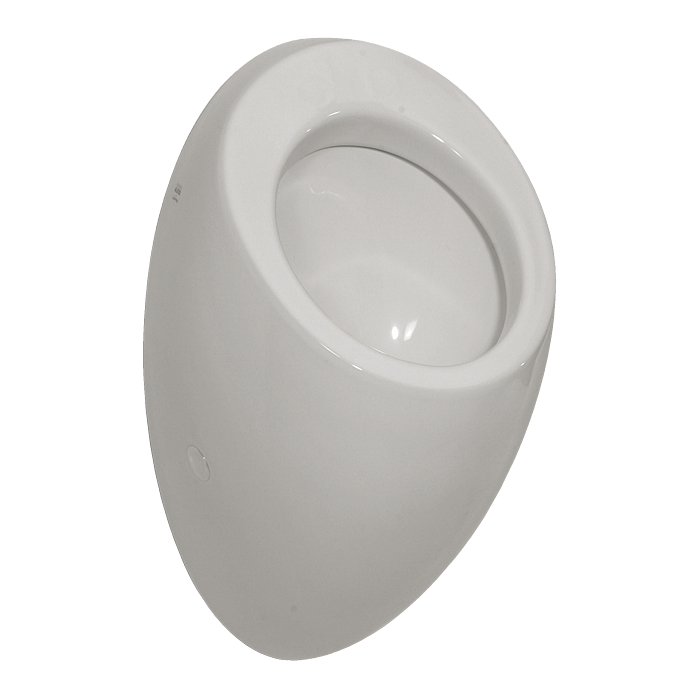

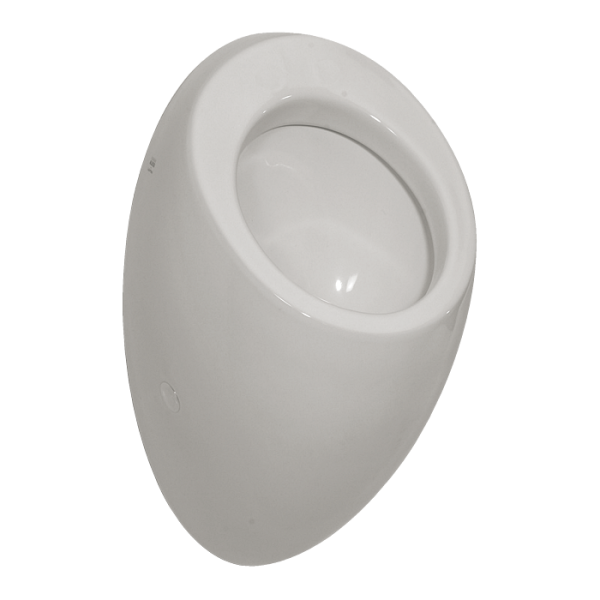

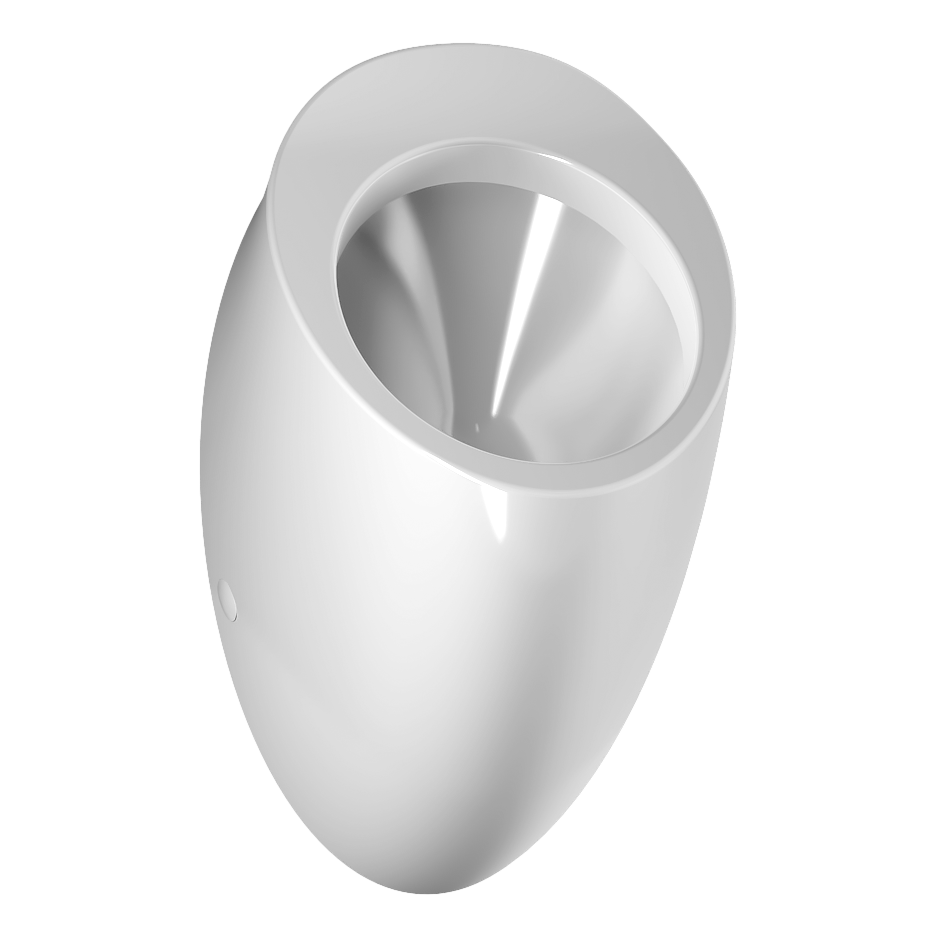

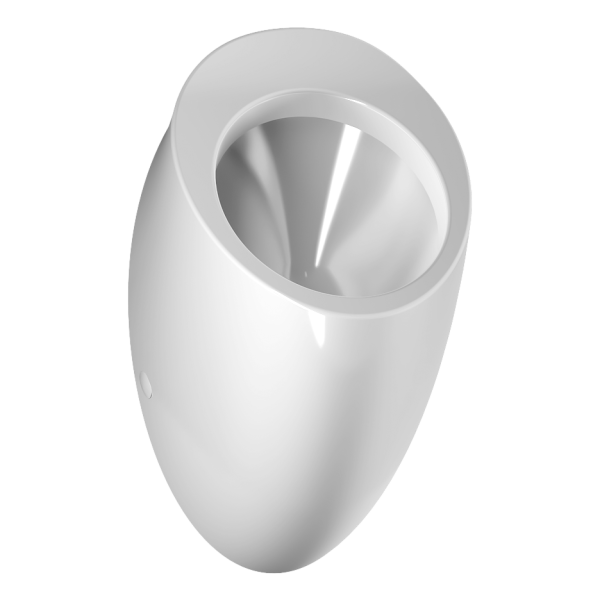

Urinal Alessi mit integrierter Radar - Spüleinheit und integriertem Trafo, 230V AC

Charakteristik

  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
  • adjustable flushing time from 0,5 to 15,5 sec.
  • adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
  • parameters adjustment by SLD 04 remote control (without the necessity to dismantle the urinal from the wall)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Auftragsnummer 01255
Code SLP 25RZ

Lieferumfang

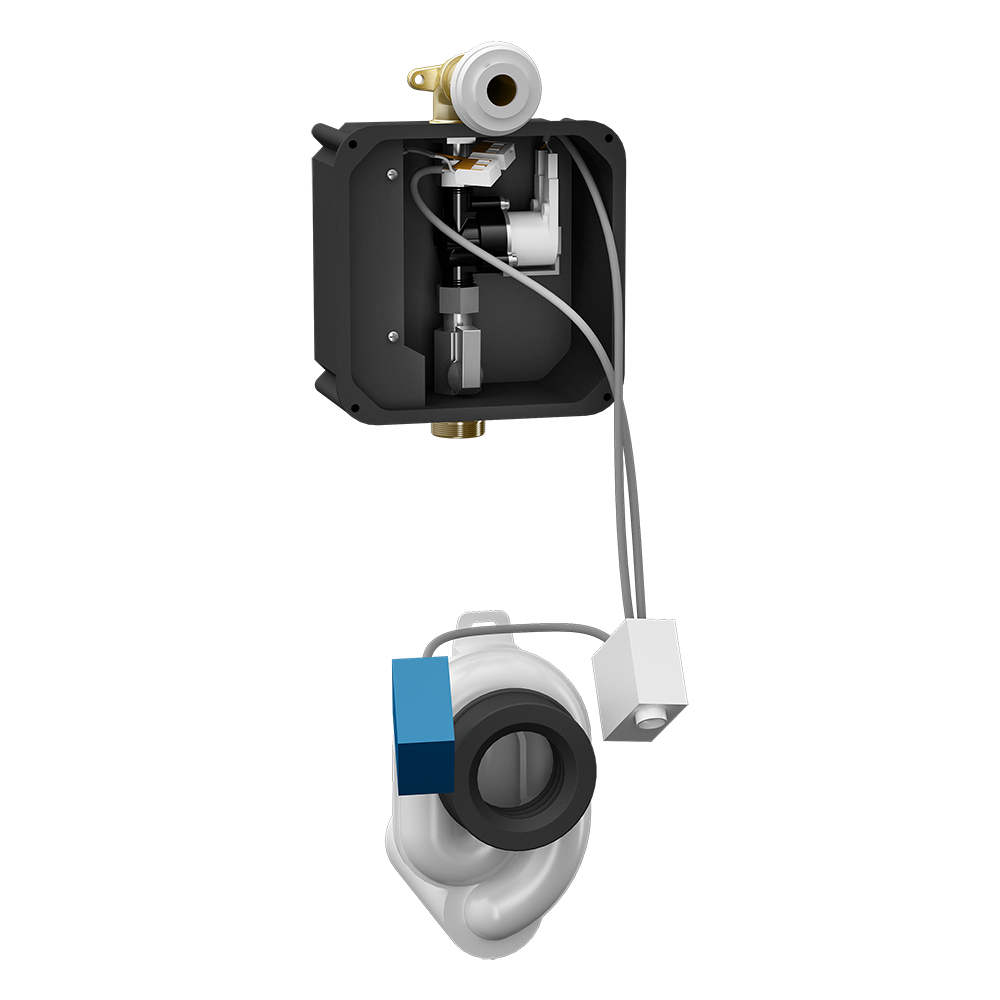

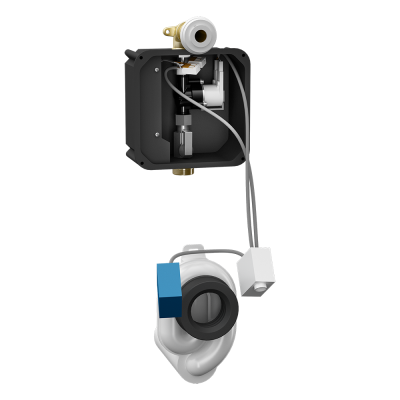

SLP 25RZ - supply No. 01255 - ceramic urinal with an integrated radar sensor and electronics; plastic mounting box with an integrated power supply, brass screw-coupling, electromagnetic valve (1 pc.) and ball valve with a filter; special outlet fitting with a rubber seal; waste siphon; mounting set

technische Information

Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 230V AC/50Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
