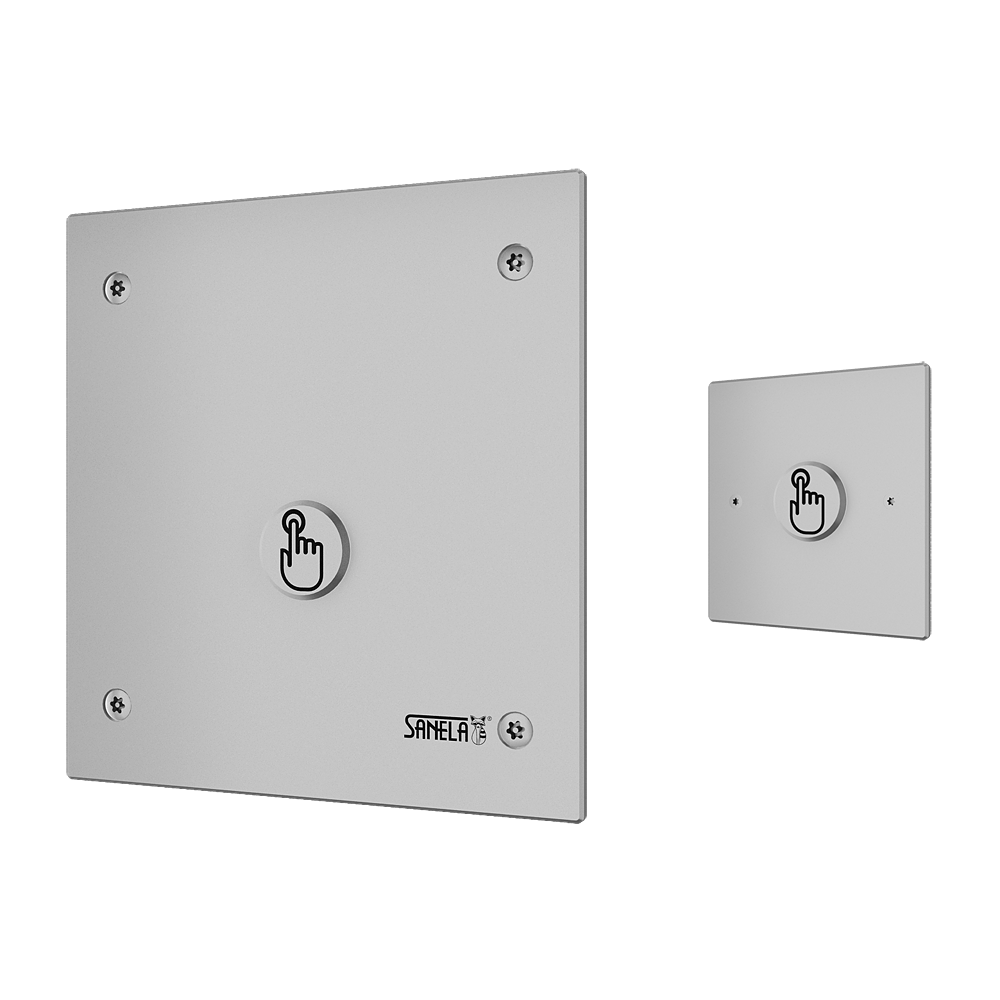

SLW 03PA

WC – Spülsteuerung piezogesteuert, mit Vandalismussicherer Abdeckung, 24V DC

Charakteristik

  • for disabled people
  • vandal-proof
  • designed for prisons
  • stainless steel cover, thickness 3 mm
  • second piezo button (distant) for disabled people included
  • toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
  • water flows after soft push of the piezo button
  • adjustable flushing time from 0,5 to 15,5 seconds, standardly adjusted to 5 seconds
  • parameters adjustment by SLD 04 remote control
  • function switch ON/OFF
  • possibility of additional manual flush by push-button (f.e. during the cleaning)
  • automatic hygiene flush after each 8 hours non using of toilet (in accordance with EU hygiene norms)
  • electromagnetic valve with a possibility to regulate rate of flow, possibility to flush a toilet by turn of coil of the electromagnetic valve (f.e. in the case of blackout)
Auftragsnummer 14036
Code SLW 03PA

Lieferumfang

SLW 03PA - supply No. 14036 - vandal-proof stainless steel cover (3 mm) with an integrated electronics and piezo button; stainless steel mounting box with a brass screw-coupling and electromagnetic valve (1 pc); outlet fitting with a rubber seal (as direct connection to the PVC pipe with outer Ø 40 mm); torx screw (4 pcs.); stainless steel cover with piezo button for distant flushing; plastic mounting box; torx screws (2 pcs.); connecting cable with connectors (lenght 2500 mm); mounting set

technische Information

Dimension of stainless steel cover: 160 x 170 x 3 mm
Dimension of mounting box: 145 x 155 x 100 mm
Dimensions of distant cover plate: 85 x 90 x 3 mm
Connecting cable with connectors: 2500 mm
Operating voltage: 24V DC external
Recommneded flow pressure: min. 0,3 - 0,6 MPa
Rate of flow: 60 l/min. (inf. data)
Water inlet: Ø min. 32 mm (PN 16) male thread G 1˝
Water outlet: outlet fitting with a rubber sealing (as direct connection to the PVC pipe with outer Ø 40 mm)
