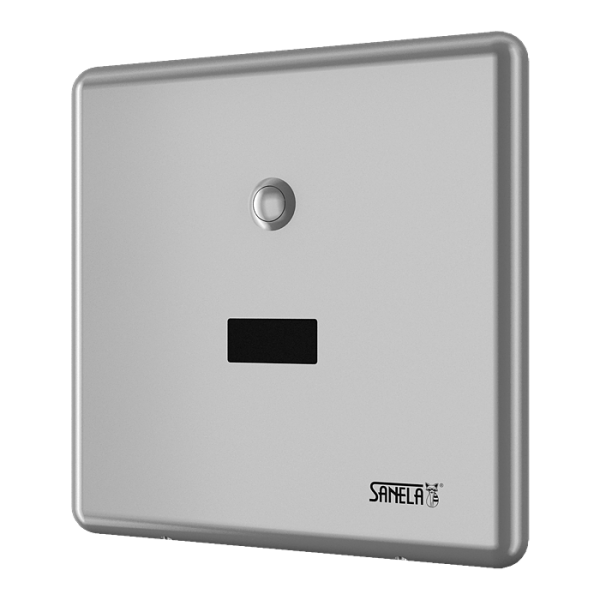

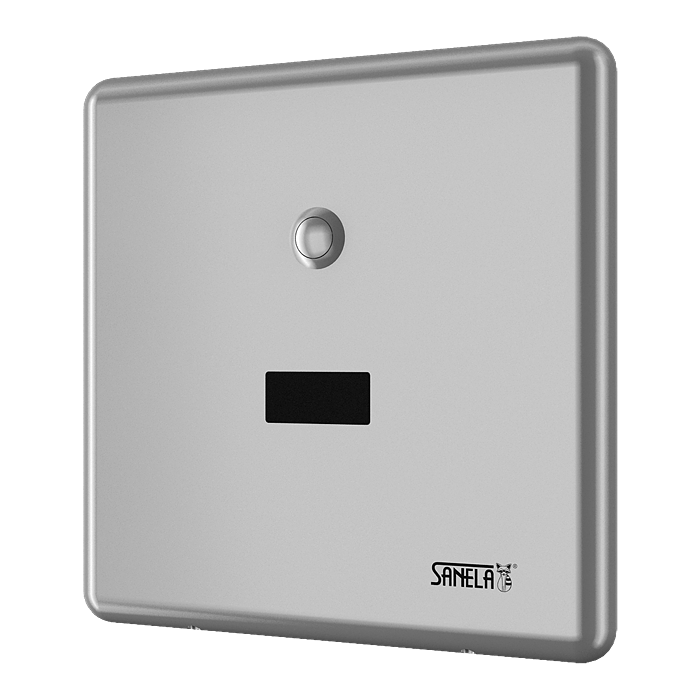

SLW 01NK

WC – Spülsteuerung für Druckwasser, 24V DC

Charakteristik

  • toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
  • system reacts to the user attendance in front of the toilet at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 sec.
  • water flows after 2 sec. after leaving active range
  • adjustable flushing time from 0,5 to 15,5 seconds
  • parameters adjustment by SLD 03 remote control
  • function switch ON/OFF
  • possibility of additional manual flush by push-button (f.e. during the cleaning)
  • automatic hygiene flush after each 8 using of toilet (in accordance with EU hygiene norms)
  • electromagnetic valve with a possibility to regulate rate of flow, possibility to flush a toilet by turn of coil of the electromagnetic valve (f.e. in the case of electricity blackout)
Auftragsnummer 04015
Code SLW 01NK

Lieferumfang

SLW 01NK - supply No. 04015 - stainless steel cover with electronics, stainless steel mounting box with electromagnetic valve, outlet fitting and rubber sealing as a direct connection to a PVC pipe with outer diameter of 40 mm

technische Information

Dimension of mounting box: 145 x 155 x 100 mm
Dimension of stainless cover: 170 x 170 x 10 mm
Operating voltage: 24V DC external
Active range: 0,3 - 0,7 m
Recommended flow pressure: min. 0,1 - 0,8 MPa
Rate of flow: 60 l/min. (inf. data)
Water inlet: ø min. 32 mm (PN 16) male thread G 1˝
Water outlet: outlet fitting with a rubber sealing (as direct connection to the PVC pipe with outer Ø 40 mm)
