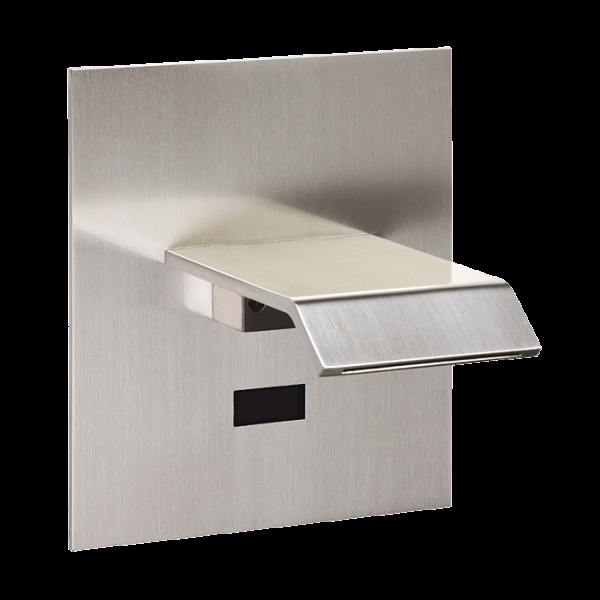

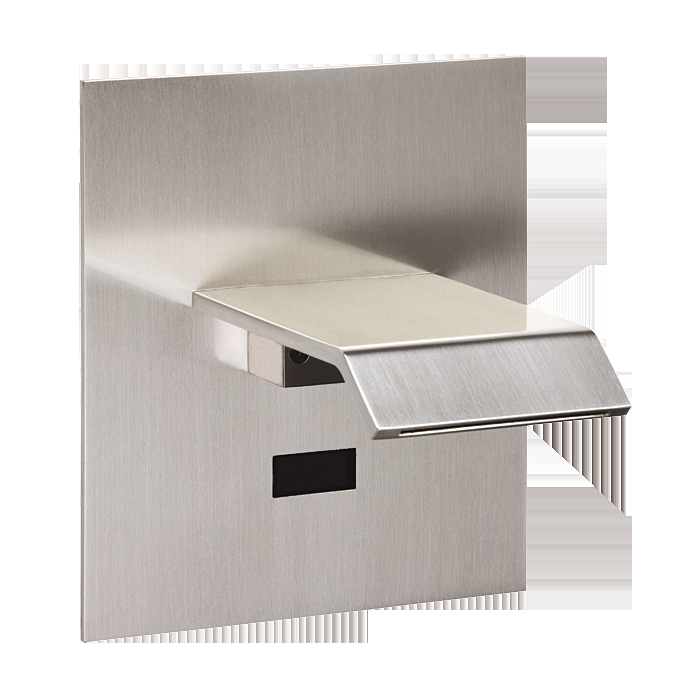

SLU 14 - Solange der Vorrat reicht
Wand-Armatur, Unterputz, für Kalt- und Warmwasser, 24V DC
Charakteristik
- SLU 14 - polished finish
- function of automatic water stop after 5 minutes of continuous flow
- water is flowing as long as hands are in the active range (max. range to 0,3 m)
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay
- adjustable time delay from 0,25 to 7,75 sec.
- possibility of changing of time delay, active range and switching off by SLD 03
- washbasin tap is destined for cold or premixed water, water temperature is regulated by ball valve
- START/STOP program
Auftragsnummer | 03140 |
Code | SLU 14 |
Lieferumfang
SLU 14 - supply No. 03140 - stainless steel cover with an integrated electronics; spout 125 mm; plastic mounting box with brass screw-coupling, electromagnetic valve (1 pc.) and ball valve
technische Information
Stainless steel cover dimension: 160 x 180 x 3 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 24V DC external
Active range: standard 0 - 0,3 m, START/STOP program 0,05-0,1 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 24V DC external
Active range: standard 0 - 0,3 m, START/STOP program 0,05-0,1 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
