SLP 99RZ
Urinal - Radar – Spüleinheit auf Montageschiene, Auftragsbezogen, mit integriertem Trafo, 230V AC
Es tut uns leid, aber dieses Produkt ist nicht mehr in unserem Sortiment. Versuchen Sie, ein anderes aus unserem Sortiment auszuwählen aus unserem Sortiment.
Charakteristik
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
- adjustable flushing time from 0,5 to 15,5 sec.
- adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
- parameters adjustment by SLD 04 remote control (without the necessity to dismantle the urinal from the wall)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- TYPE OF URINAL MUST BE MENTIONED IN THE ORDER!
- Auftragsnummer: 01995
Ich interessiere mich für weitere Informationen
Lieferumfang

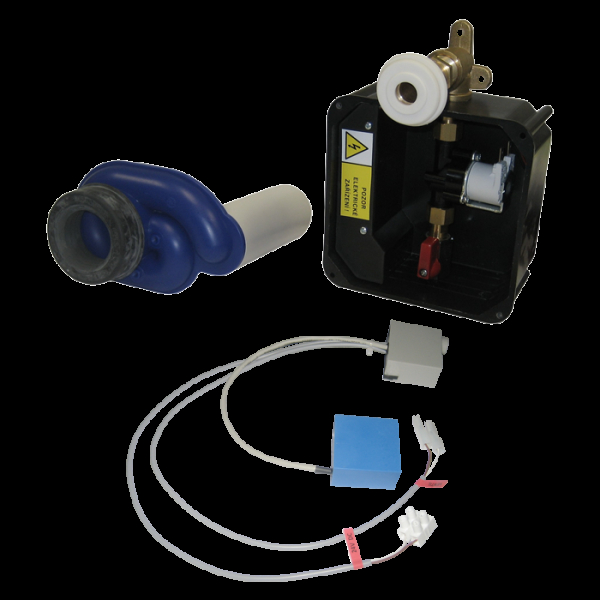

SLP 99RZ - supply No. 01995 - radar flushing unit, electromagnetic valve, innlet fitting, integrated power supply
technische Information
Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 230V AC/50Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
Operating voltage: 230V AC/50Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
