SLW 02GT

WC – Spülsteuerung für Wandeinbausystem Geberit, SIGMA Abdeckung, 24 V DC

Charakteristik

  • flushing unit destined for Geberit installation systems: KOMBIFIX: 110.367.00.5, 110.300.00.5, DUOFIX SPECIAL: 111.355.00.5, DUOFIX: 111.300.00.5, 111.367.00.5, 111.350.00.5, 111.390.00.5
  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 sec.
  • water flows 2 sec. after leaving active range
  • the flushing time is fixed to 6 sec.
  • possibility of additional manual flush by push-button (f.e. during the cleaning)
  • automatic flush after each 8 use of toilet (in accordance with EU hygiene norms)
  • parameters adjustment by SLD 03 remote control
  • function switch ON/OFF
  • automatic hygiene flush after 24 hours non-use
Auftragsnummer 14022
Code SLW 02GT

Lieferumfang

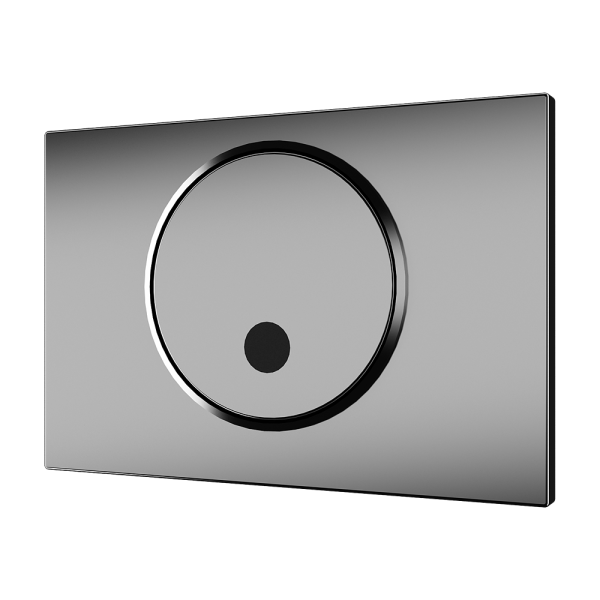

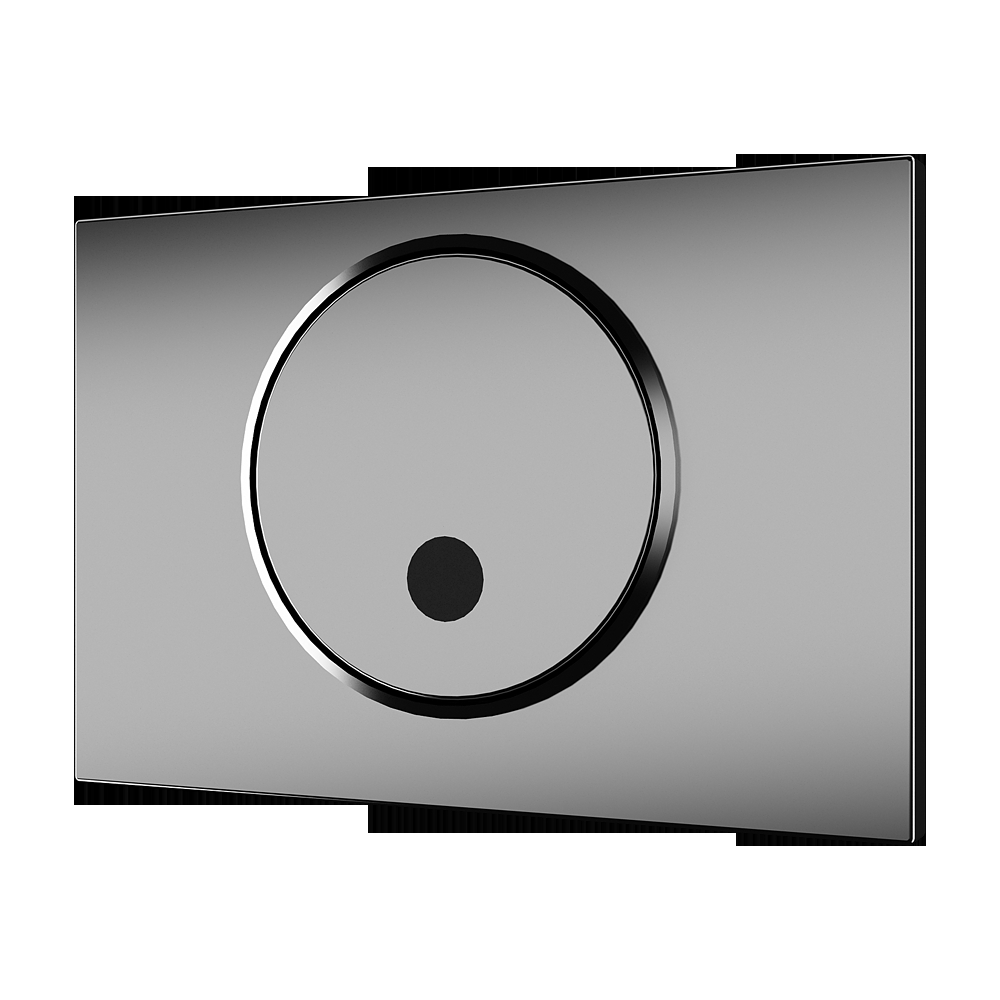

SLW 02GT - supply No. 14022 - Geberit push-button SIGMA 10 (stainless steel) with integrated electronics; stainless steel holder of electromagnet; electromagnet

technische Information

Operating voltage: 24 V DC
Active range: 0,3 - 0,7 m
  • Drucken

Accessories

Universal - Fernbedienung zur…
Externes Netzteil 230 V AC/ 24 V DC
Trafo für die Montage auf DIN …
Trafo für die Montage auf DIN …
