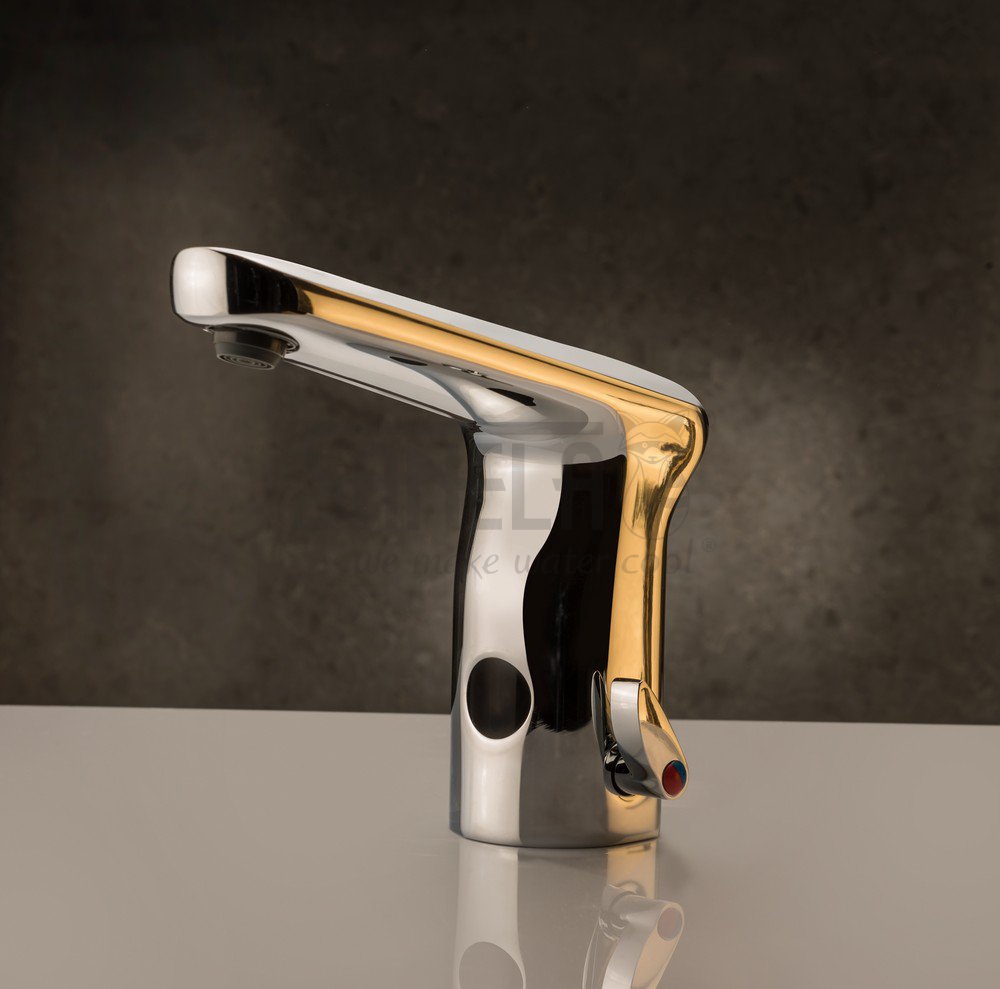

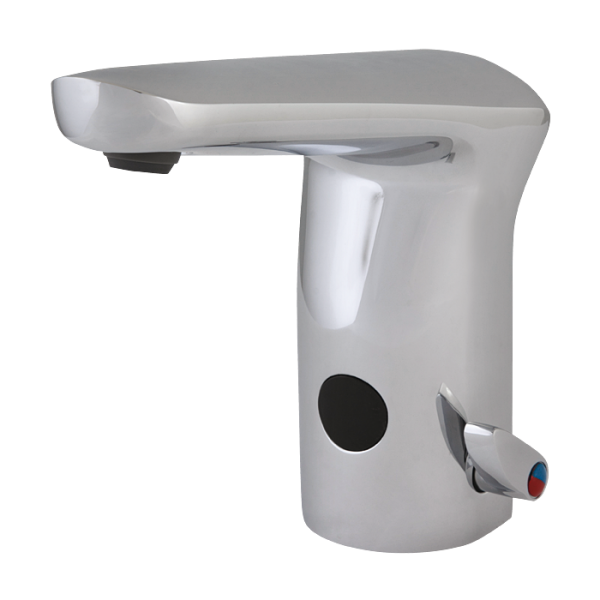

SLU 37B

Auftischarmatur mit Kalt-/Warm - Mischer, 6V

Charakteristik

  • economical aerator, rate of flow 6 l/min
  • possibility of water temperature adjustment by mixer and follow-up plug by cover
  • electromagnetic valve is integrated in tap body
  • function of automatic water stop after 5 minut of continuous flow
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay
  • adjustable time delay from 0,25 to 7,75 sec.
  • possibility of changing of time delay, active range and switching off by SLD 03
  • taps are destined for cold and hot water, temperature is regulated by an integrated mixer
  • monitoring of battery capacity
  • START/STOP program
Auftragsnummer 03375
Code SLU 37B

Lieferumfang

SLU 37B - supply No. 03375 - chromium-plated faucet with an integrated mixer, electronics and electromagnetic valve; battery holder; connecting hoses; angle valve with filter and non-return valve (2 pcs.); battery holder; 4 pcs. of alkaline batteries chromium-plated cover

technische Information

Operating voltage: 6V
Active range: standard 0 - 0,3 m, START/STOP program 0,05 - 0,1 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2˝
