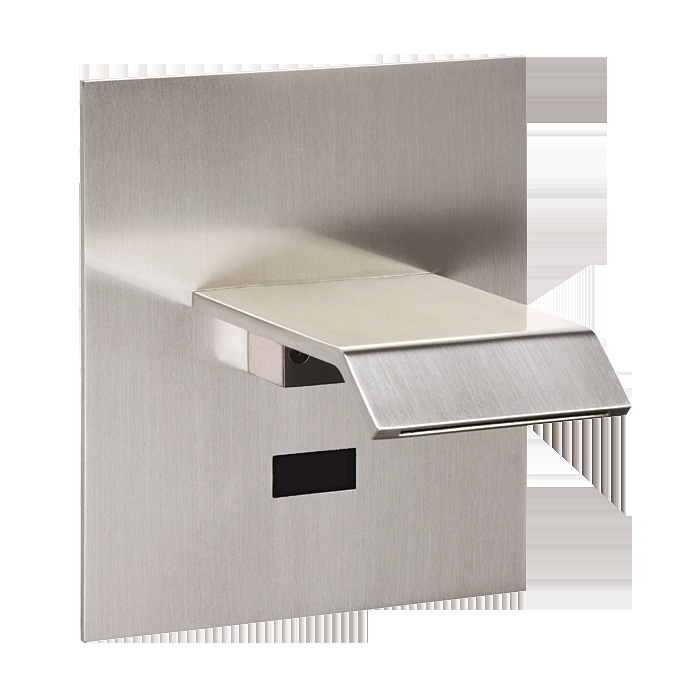

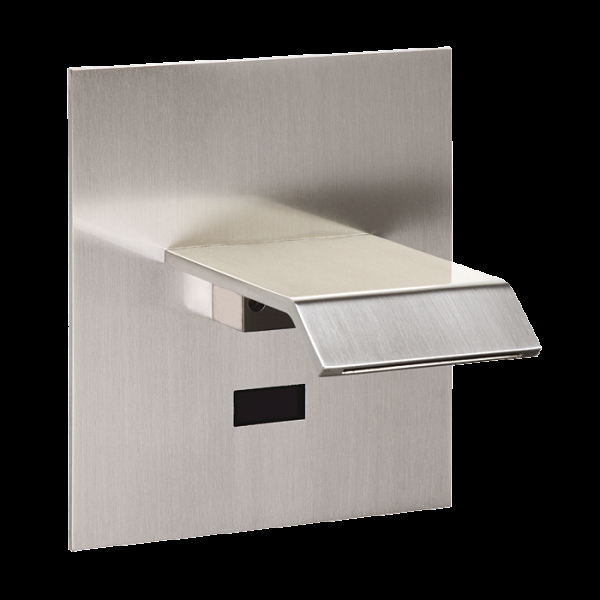

SLU 14X
Wand-Armatur, Unterputz, für Kalt- und Warmwasser, Oberfläche gebürstet, 24V DC
Es tut uns leid, aber dieses Produkt ist nicht mehr in unserem Sortiment. Versuchen Sie, ein anderes aus unserem Sortiment auszuwählen aus unserem Sortiment.
Charakteristik
- SLU 14X - brushed finish
- function of automatic water stop after 5 minutes of continuous flow
- water is flowing as long as hands are in the active range (max. range to 0,3 m)
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay
- adjustable time delay from 0,25 to 7,75 sec.
- possibility of changing of time delay, active range and switching off by SLD 03
- washbasin tap is destined for cold or premixed water, water temperature is regulated by ball valve
- START/STOP program
- Auftragsnummer: 64144
Ich interessiere mich für weitere Informationen
Lieferumfang
SLU 14X - supply No. 64144 - stainless steel cover with an integrated electronics; spout 125 mm; plastic mounting box with brass screw-coupling, electromagnetic valve (1 pc.) and ball valve
technische Information
Stainless steel cover dimension: | 160 x 180 x 3 mm |
Mounting box dimension: | 140 x 140 x 75 mm |
Operating voltage: | 24V DC external |
Active range: | standard 0 - 0,3 m, START/STOP program 0,05-0,1 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 12 l/min. (inf. data) |
Water inlet: | male thread G 3/4“ |
Daten zum Herunterladen
- Montageanleitung (1.19 MB)
- Datenblatt
Empfohlenes Zubehör
