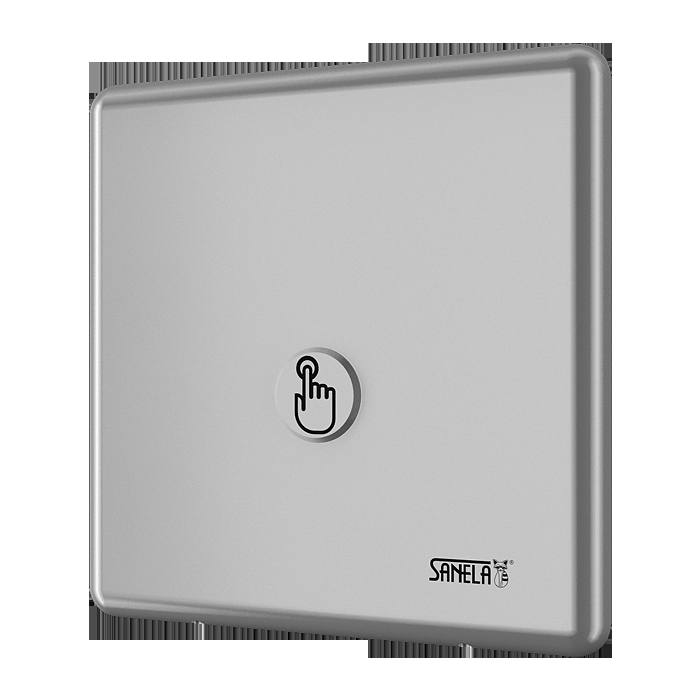

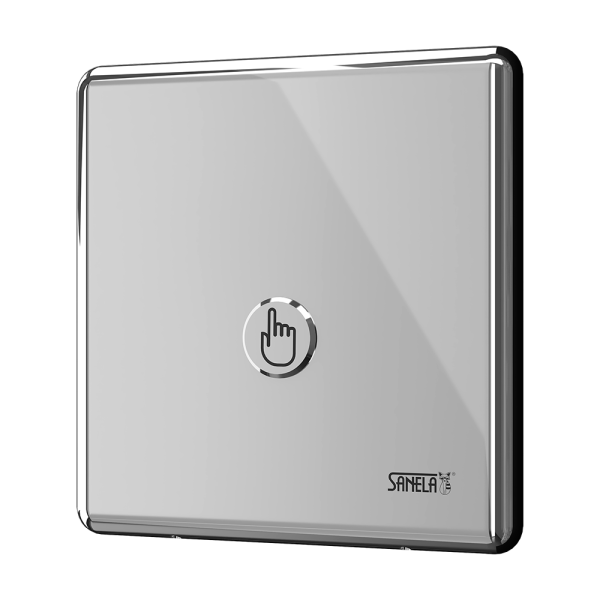

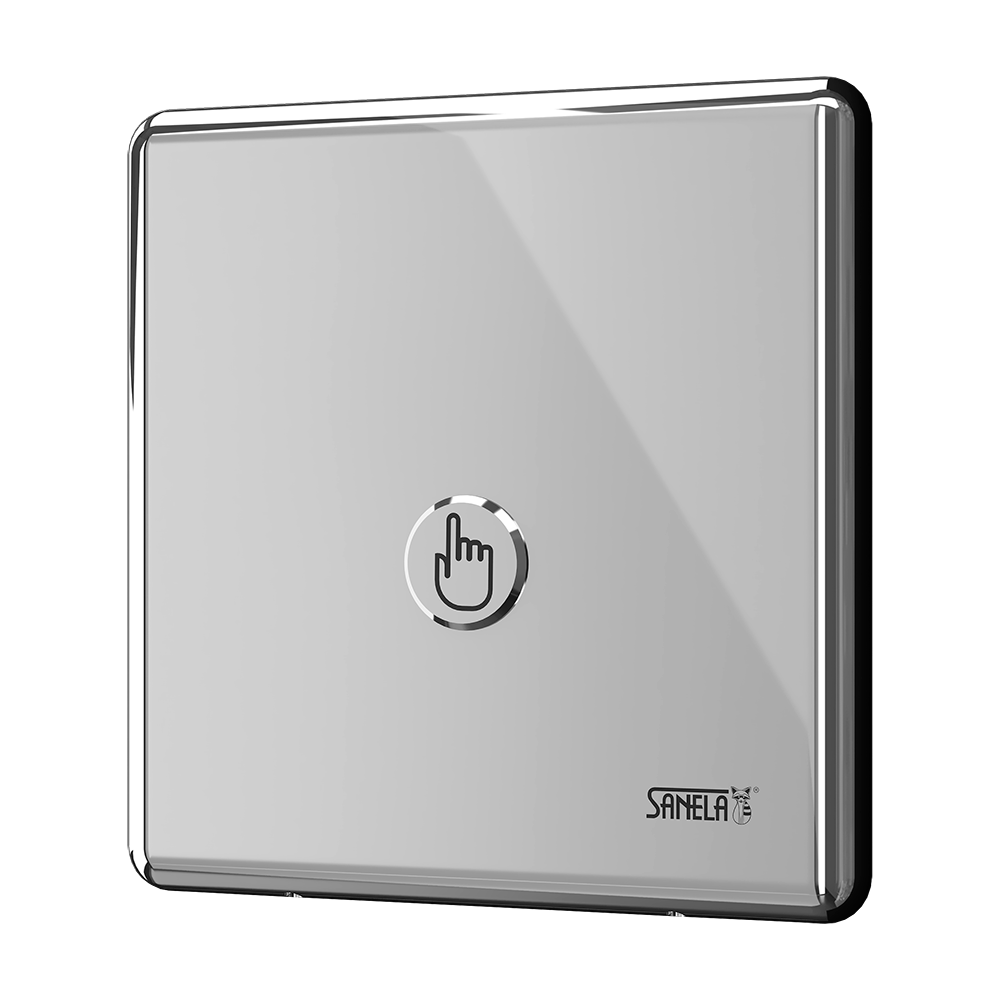

SLS 01PB

Unterputz Duschsteuerung, piezogesteuert, für kaltes oder vorgemischtes Wasser, mit Mauerkasten und Montageset, 9V

Charakteristik

  • vandal-proof
  • water flows after soft push of the piezo button
  • adjustable flowing time from 10 s to 5 min, standardly adjusted to 120 s.
  • water could be stopped by follow-up soft push of piezo button
  • parameters adjustment by SLD 04 remote control
  • function switch ON/OFF
Auftragsnummer 12013
Code SLS 01PB

Lieferumfang

SLS 01PB - supply No. 12013 - stainless steel stamped cover with an integrated battery-operated electronics; mounting plastic box with a brass screw-coupling, electromagnetic valve (1 pc.) and ball stop valve; mounting set; lithium battery SLA 09

technische Information

Dimension of stainless steel cover: 170 x 170 x 10 mm
Dimension of plastic mounting box: 140 x 140 x 75 mm
Operating voltage: 9V
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
