SLP 49RZ

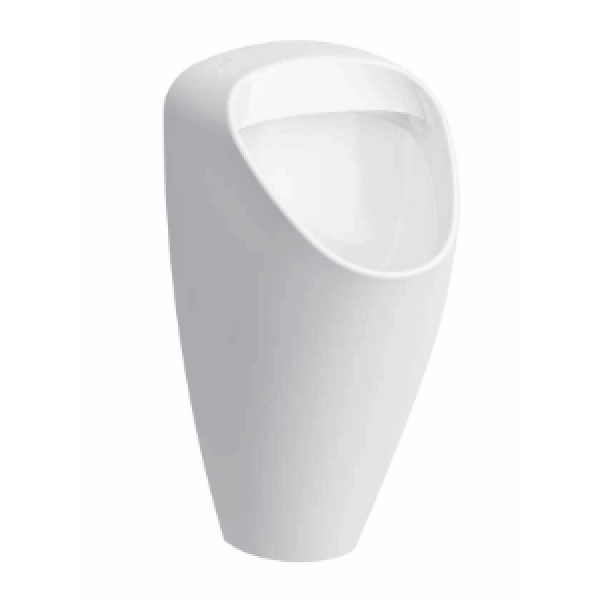

Urinal Caprino Plus mit integrierter Radar - Spüleinheit und integriertem Trafo, 230V AC

Charakteristik

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
  • adjustable flushing time from 0,5 to 15,5 sec.
  • adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
  • parameters adjustment by SLD 04 remote control (without the necessity to dismantle the urinal from the wall)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Auftragsnummer 01495
Code SLP 49RZ

Lieferumfang

SLP 49RZ - supply No. 01495 - ceramic urinal, mounting rail with a radar flushing unit, electromagnetic valve, connecting hose, angle valve with a filter, special inlet fitting with a rubber seal, siphon, mounting set, paper drill template, integrated power supply

technische Information

Operating voltage:230V AC/50Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a sealing
